How Occupancy Shapes Your Fire Sprinkler System

In fire sprinkler system design, the occupancy hazard classification is not just a label, it’s the

foundation upon which every hydraulic calculation, sprinkler selection, and water supply requirement is built. NFPA 13: Standard for the Installation of Sprinkler Systems defines these classifications based on the expected fire load, combustibility of contents, heat release rate, and fire growth potential.

Misclassification can have serious consequences: an underrated hazard may lead to insufficient water delivery and system failure, while an overrated hazard can result in unnecessary capital cost, oversizing of equipment, and higher long-term maintenance. Understanding these classifications allows building owners to anticipate the operational and cost impacts when spaces are reconfigured, occupancy types change, or expansion plans are considered.

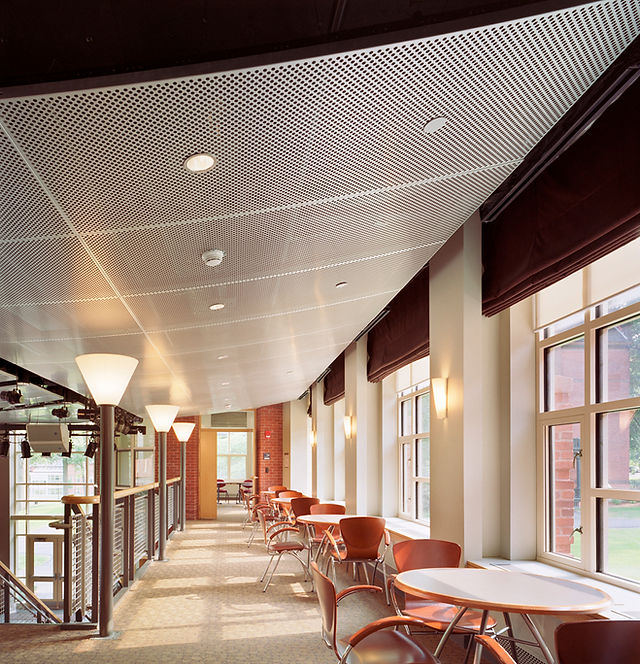

Example of concealed fire sprinklers within a cafeteria

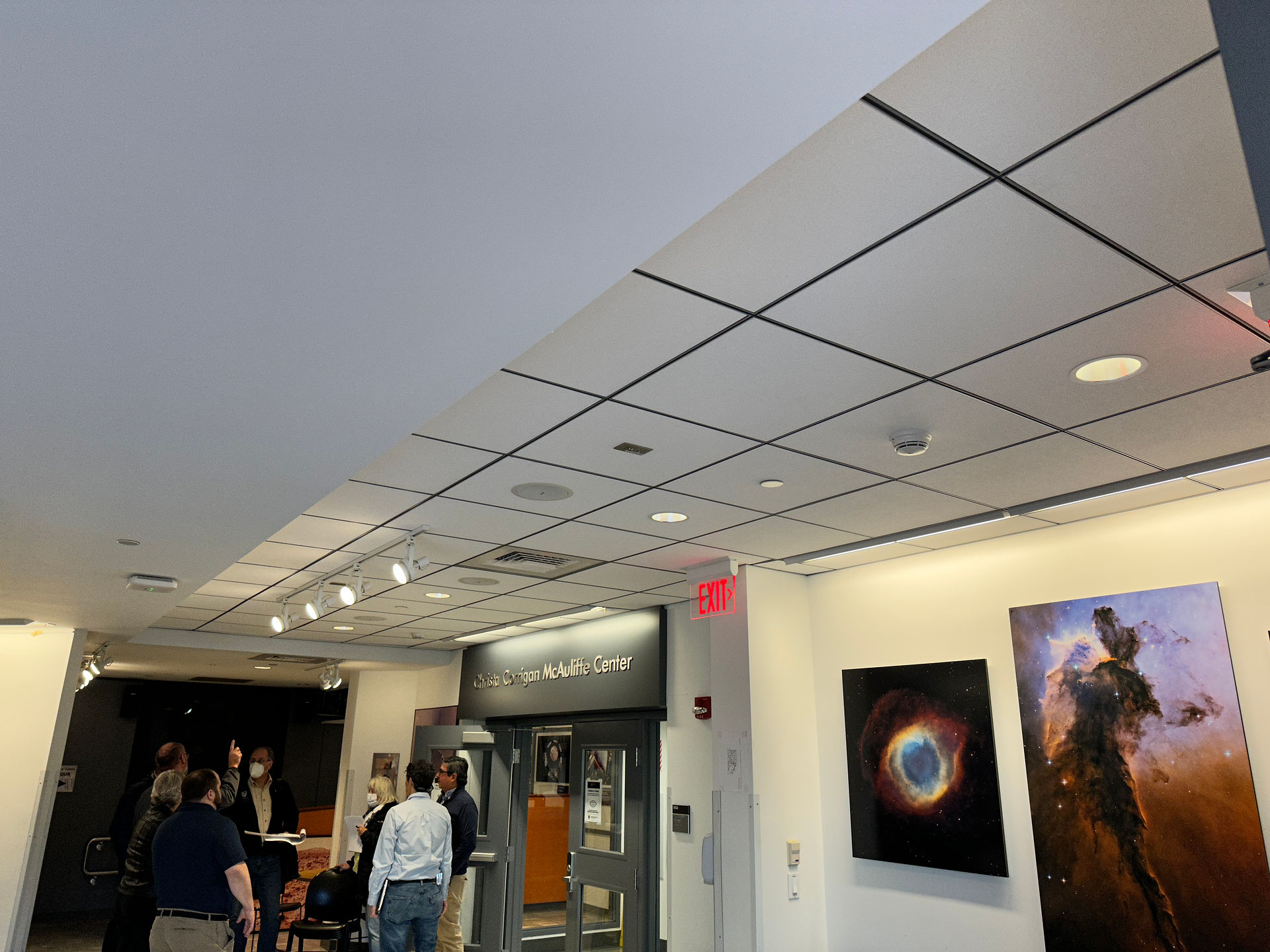

Concealed fire sprinklers within a museum

Concealed fire sprinklers distributed through a ceiling

NFPA 13 HAZARD CLASSIFICATION CATEGORIES

Under NFPA 13, most occupancies fall into one of four primary hazard levels, with additional provisions for special occupancies and storage applications. The four primary occupancies are listed and described below. Each hazard classification specifies two critical design parameters that directly influence system sizing: minimum design density and design area.

Design density, expressed in gallons per minute per square foot (gpm/ft²), is the rate at which water must be applied over a given floor area during a fire. Higher hazard classifications require higher densities because they involve greater combustible loads, faster fire growth, and higher heat release rates. Design area, measured in square feet, is the size of the floor area assumed to be operating during a fire for hydraulic calculation purposes. Larger design areas increase total water demand because more sprinklers are factored into the operating scenario.

Together, these two values determine the total flow the system must deliver, which in turn drives pipe diameters, sprinkler K-factor selection, pump sizing, and overall system layout. For example, an Ordinary Hazard Group 2 system designed at 0.20 gpm/ft² over 1,500 ft² requires a minimum of 300 gpm for the hydraulically most remote area, whereas an Extra Hazard Group 2 system at 0.40 gpm/ft² over 2,500 ft² requires a minimum of 1,000 gpm—more than triple the minimum flow—often necessitating a fire pump and larger supply mains.

 1. Light Hazard (LH)

• Definition: Occupancies where the quantity and combustibility of contents are low, and fire is expected to spread slowly.

• Examples: Office spaces, classrooms, churches, nursing homes, and residential areas without significant fuel load.

• Design Criteria: 0.10 gpm/ft² over a 1,500 ft² design area.

• Sprinkler Type: Quick-response sprinklers are often used to improve life safety performance.

2. Ordinary Hazard (OH1 & OH2)

Ordinary Hazard example: An auditorium at a University

• Group 1 Definition: Moderate combustibility contents with moderate heat release rates.

• Examples: Parking garages, mechanical rooms, small retail spaces.

• Design Criteria: 0.15 gpm/ft² over 1,500 ft².

• Group 2 Definition: Higher combustibility or higher heat release rate than Group 1.

• Examples: Larger retail stores, light manufacturing, vehicle repair garages.

• Design Criteria: 0.20 gpm/ft² over 1,500 ft².

3. Extra Hazard (EH1 & EH2)

• Group 1 Definition: Occupancies with substantial amounts of combustible materials, where fire load and fire spread potential are high.

• Examples: Printing plants, rubber manufacturing.

• Design Criteria: 0.30 gpm/ft² over 2,500 ft².

• Group 2 Definition: Occupancies with extremely high combustibility and/or high heat release rates, often involving flammable liquids or plastics.

• Examples: Flammable liquid processing, foam manufacturing.

• Design Criteria: 0.40 gpm/ft² over 2,500 ft².

4. Special Occupancy Hazards

• Includes areas addressed in dedicated chapters of NFPA 13, such as aircraft hangars, commercial kitchens, or high-piled storage.

• Often require special application sprinklers (e.g., ESFR, CMSA) and alternate density/area curves.

A hospital's waiting room: Example for Light Hazard Occupancy

A warehouse: Example for Extra Hazard Occupancy

A lab space: Example of Ordinary Hazard Occupancy

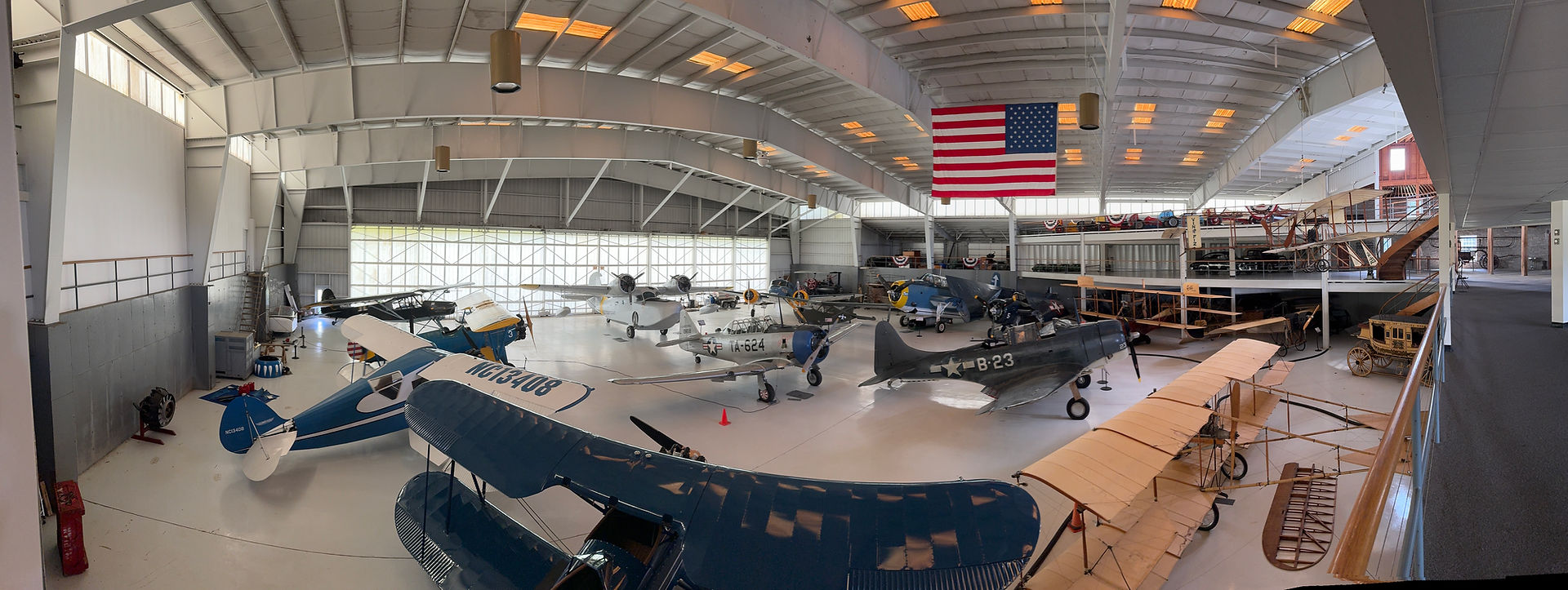

A hangar at a museum: Example for Special Occupancy Hazards

DESIGN IMPLICATIONS OF HAZARD CLASSIFICATION ON FIRE SPRINKLER SYSTEMS

Hydraulic Demand

• Higher hazard classifications increase both flow (gpm) and residual pressure (psi) requirements. This affects pipe sizing, valve selection, and whether a fire pump is necessary.

• Example: Increasing from OH2 (0.20 gpm/ft²) to EH2 (0.40 gpm/ft²) can triple water demand, potentially exceeding available municipal supply and triggering pump/tank installation.

Top-down render of ceiling plumbing and ductwork systems

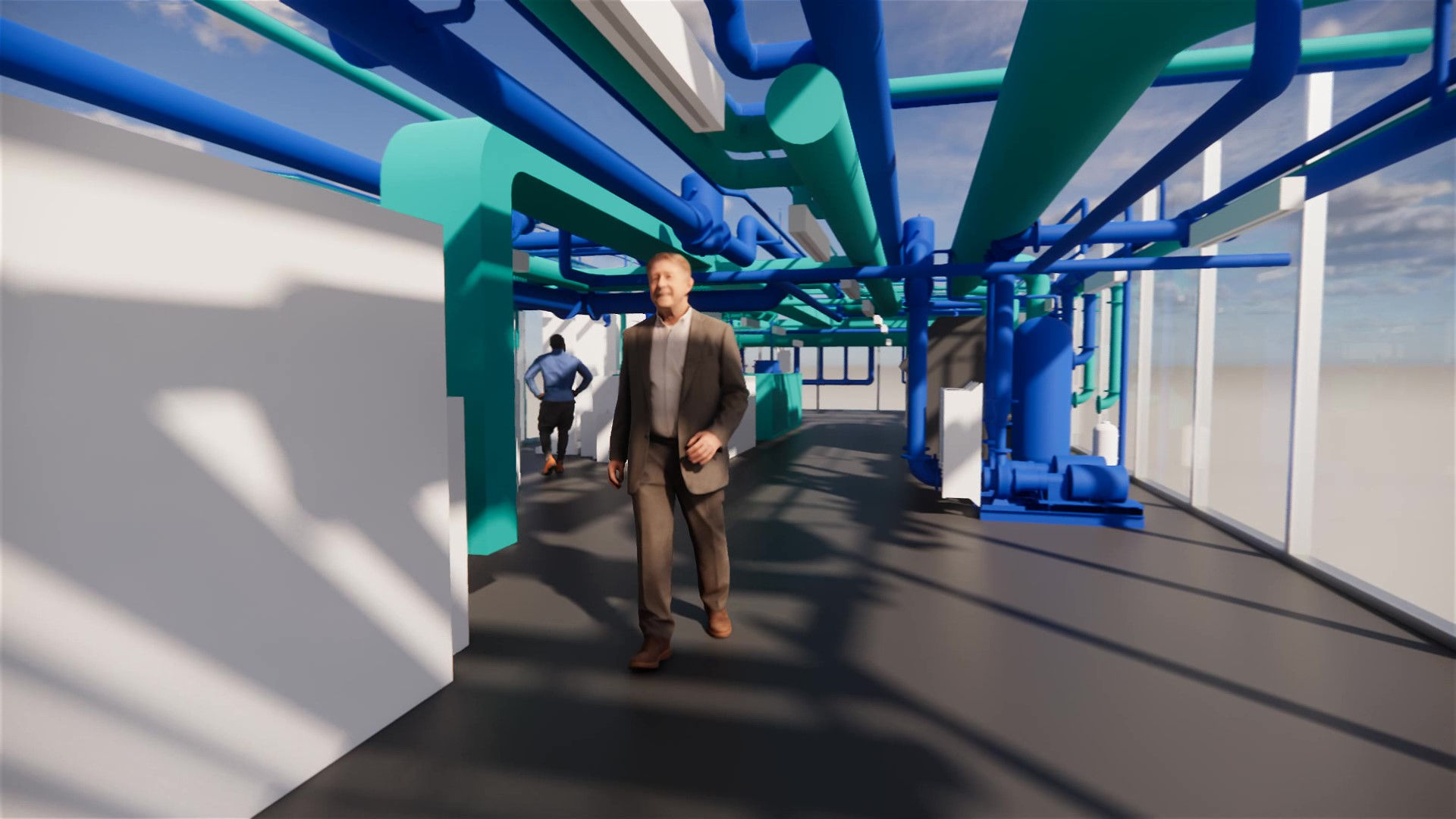

Interior render showing ceiling plumbing and ductwork systems from below within a hall

Sprinkler Selection & Spacing

• Classification influences K-factor selection, which is a numerical rating that defines how much water a sprinkler can discharge at a given pressure. The K-factor is determined by the sprinkler’s orifice size—higher K-factors mean larger orifices that can deliver more water with less pressure. The K-factor is determined by the orifice size of the sprinkler—higher K-factors mean larger orifices that can deliver more water with less pressure loss.

• Higher hazards may require larger orifice sprinklers (e.g., K17, K22 ESFR heads) to meet the higher density requirements without over pressurizing the system.

• Maximum spacing between sprinklers decreases with higher hazard levels to ensure adequate coverage density and uniform distribution.

 Area of Operation Adjustments

• NFPA 13 allows for design area reductions with quick-response sprinklers, ceilings under 20 ft and wet systems  in LH and OH occupancies, this reduction doesn’t apply to EH.

• NFPA 13 allows for design area reductions with extra hazard areas that utilize high temperature sprinklers.

• NFPA 13 also allows for a design area increases with systems that include dry systems and double interlock pre-action systems as well as pitched roofs.

• Increased hazard often means a larger calculated area, leading to higher total demand on the system.

OWNER CONSIDERATIONS

1. Occupancy Change Risk

• Converting office space to light manufacturing or high-piled storage will likely require hazard reclassification and system retrofit—often involving larger mains, pump upgrades, or even complete system replacement.

2. Future-Proofing

• For buildings with uncertain long-term use, oversizing mains or selecting pumps and tanks with reserve capacity can mitigate future costs when hazard classification changes.

3. Insurance Requirements

• FM Global and other insurers may require more conservative (higher) hazard classifications than NFPA 13 for property protection purposes, impacting both design and cost.

CONCLUSION

Fire sprinkler hazard classification is more than a code checkbox, it’s the first and most critical design decision in Fire Protection engineering. Once established, it drives every subsequent calculation, material choice, and performance parameter in the system. Owners who understand the basics of NFPA 13 hazard categories can better anticipate the cost and design impacts of renovations, tenant changes, or operational shifts. Early collaboration with a Fire Protection Engineer ensures that your building’s system is designed for its current hazard and adaptable to future changes, protecting both life safety and your long-term investment.

Written By:

Liam Mone

Senior Plumbing/Fire Protection Designer
